Entic E1

Type

A compact Micro-ATX / Mini-ITX mini tower measuring 168 × 258 × 340 mm, built for office and slim builds — one pre-installed 80 mm low-noise rear fan, top-mounted ATX power supply and room for graphics cards up to 230 mm.

Get quotes Explore all Cases

Entic E1 Compact

Compact mini tower PC case

Designed for efficiency and style

Small on the desk

Ample inside. A 168 × 258 × 340 mm footprint that still clears a 230 mm graphics card and a 145 mm CPU cooler.

168 × 258 × 340 mm
230 mm GPU
145 mm cooler
M-ATX / Mini-ITX

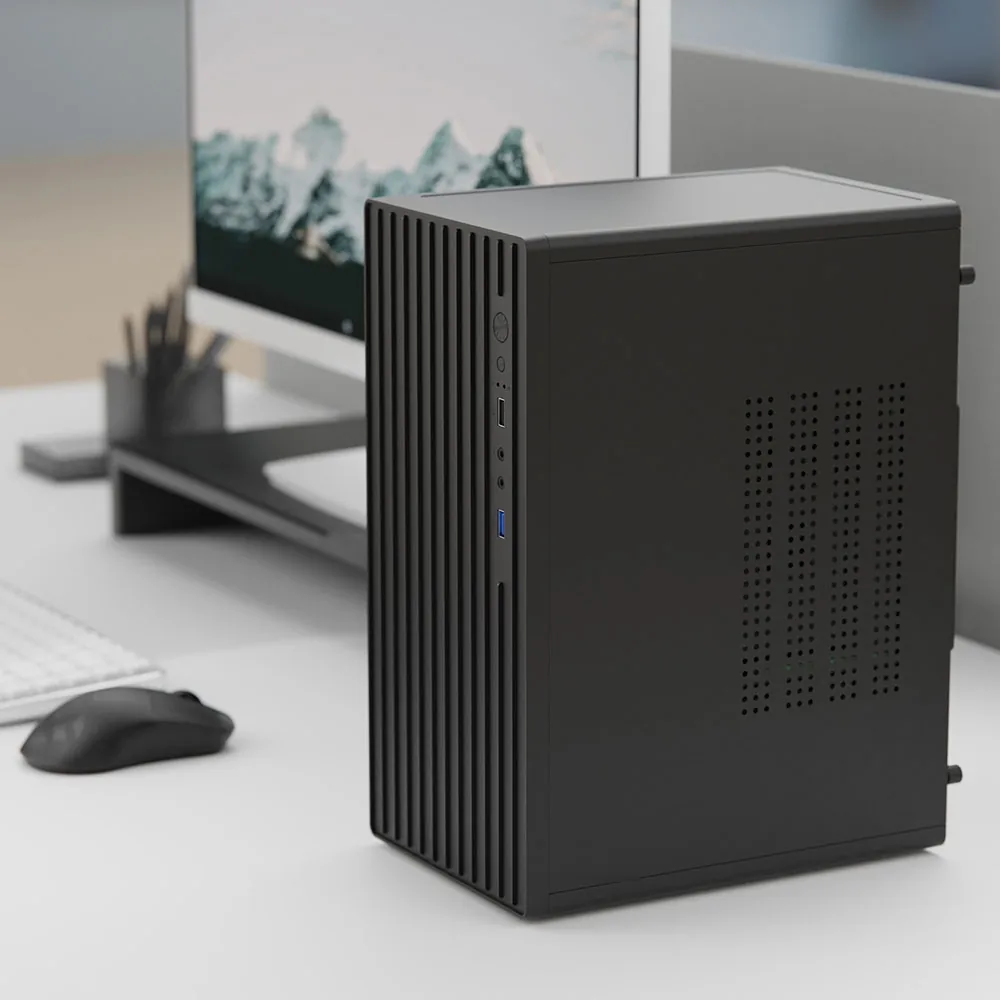

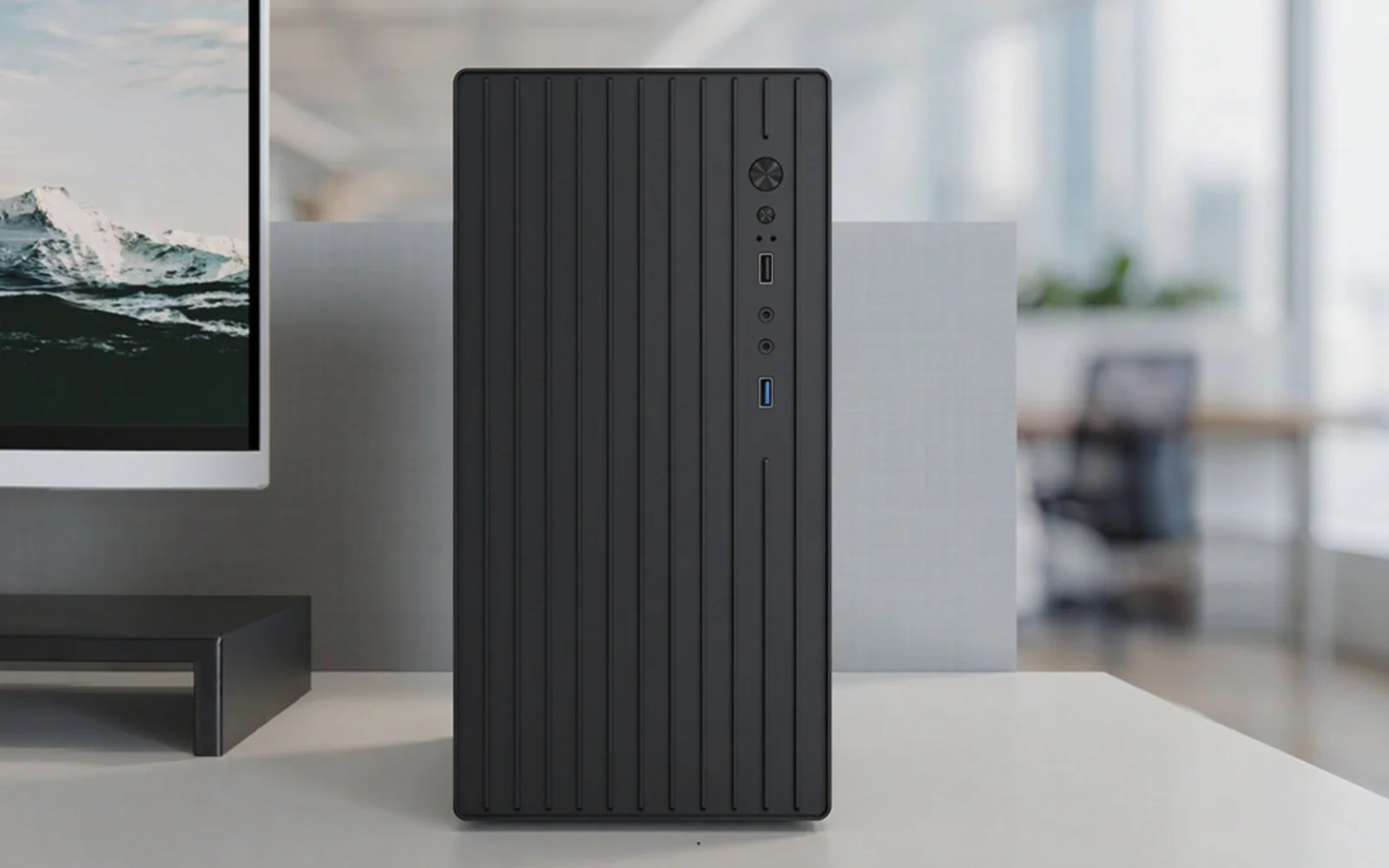

Entic E1 compact mini tower on an office desk

Vented on both sides

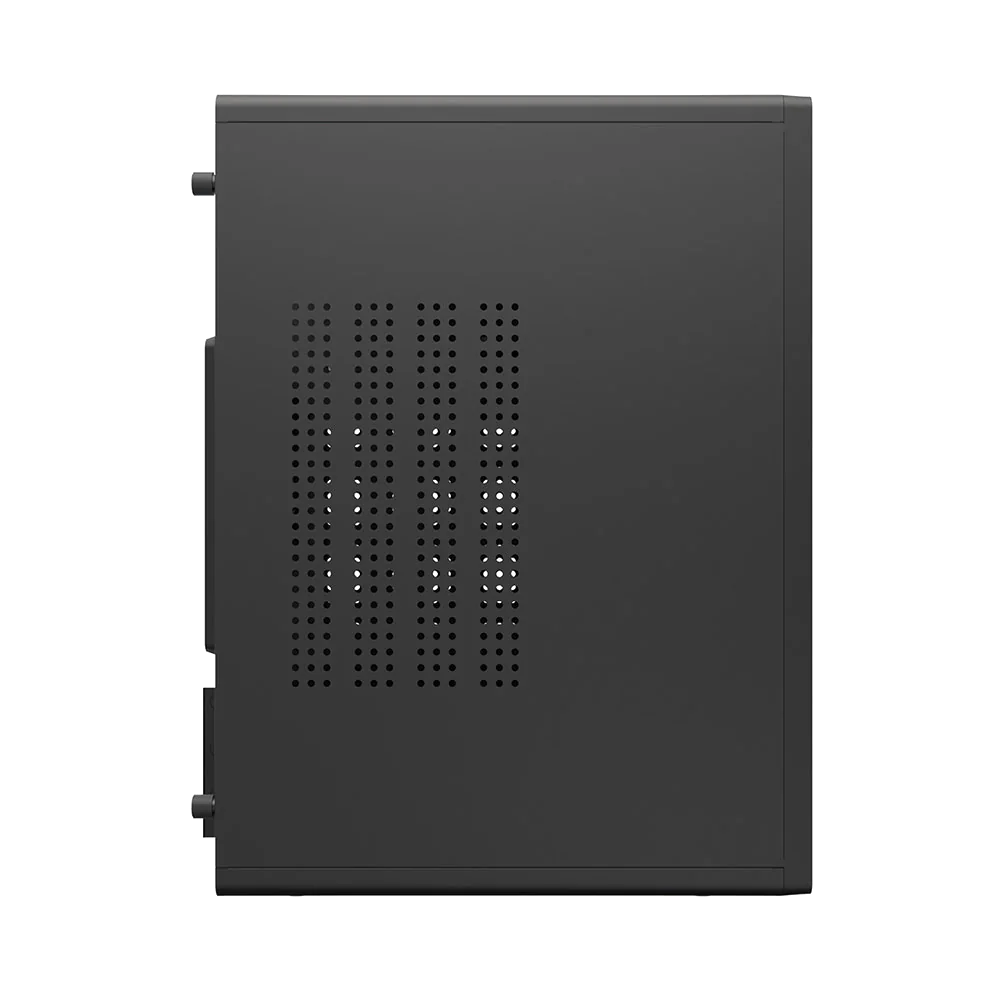

Airhole side panels. Perforations in the left and right side panels improve airflow efficiency.

Left + right panels
80 mm rear fan included
90 mm rear optional

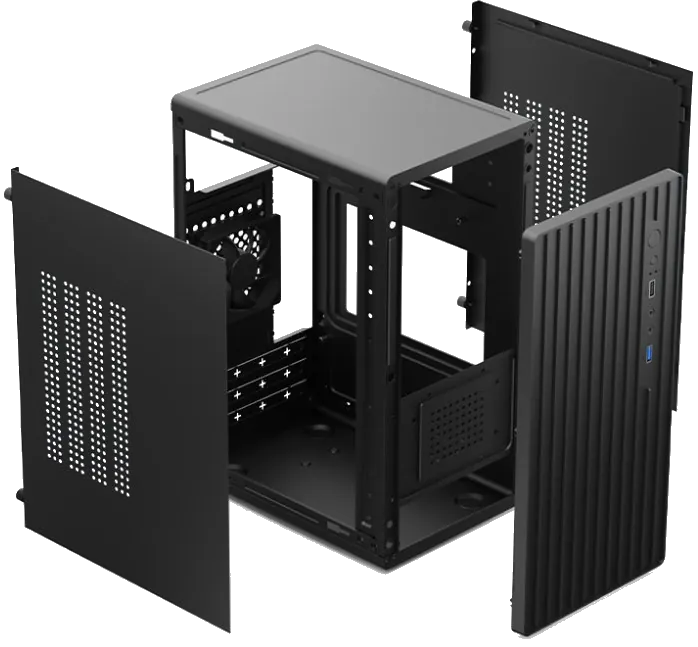

Entic E1 exploded view with the side panels, drive cages and power supply separated from the chassis

Room where it matters

230 mm and 145 mm. Mini-ITX and Micro-ATX boards both fit, with clearance for a long graphics card and a full-height CPU cooler at the same time.

M-ATX / Mini-ITX
230 mm GPU
145 mm cooler

With an M-ATX board, a long graphics card may cover the lower HDD bay.

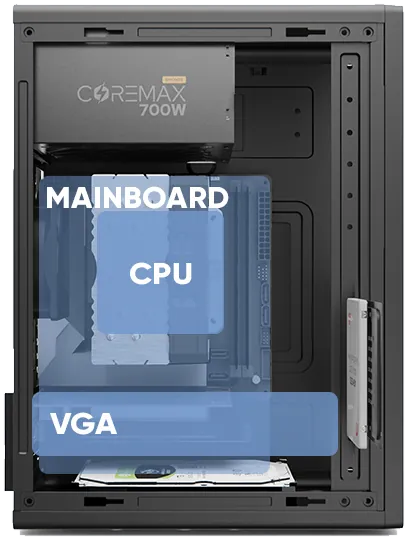

Entic E1 interior: motherboard, CPU cooler and VGA mounting area

Bays under the shroud

Two of each. Dual SSD and dual HDD mounts sit behind the PSU shroud, next to a power supply up to 160 mm.

2 × SSD
2 × HDD
PSU up to 160 mm

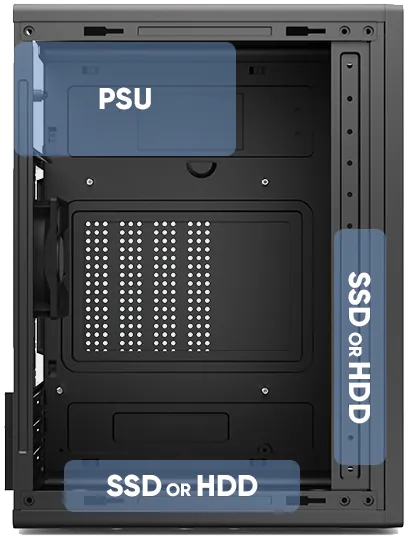

Entic E1 interior: SSD/HDD bays and top-mounted power supply area

Ready for the desk

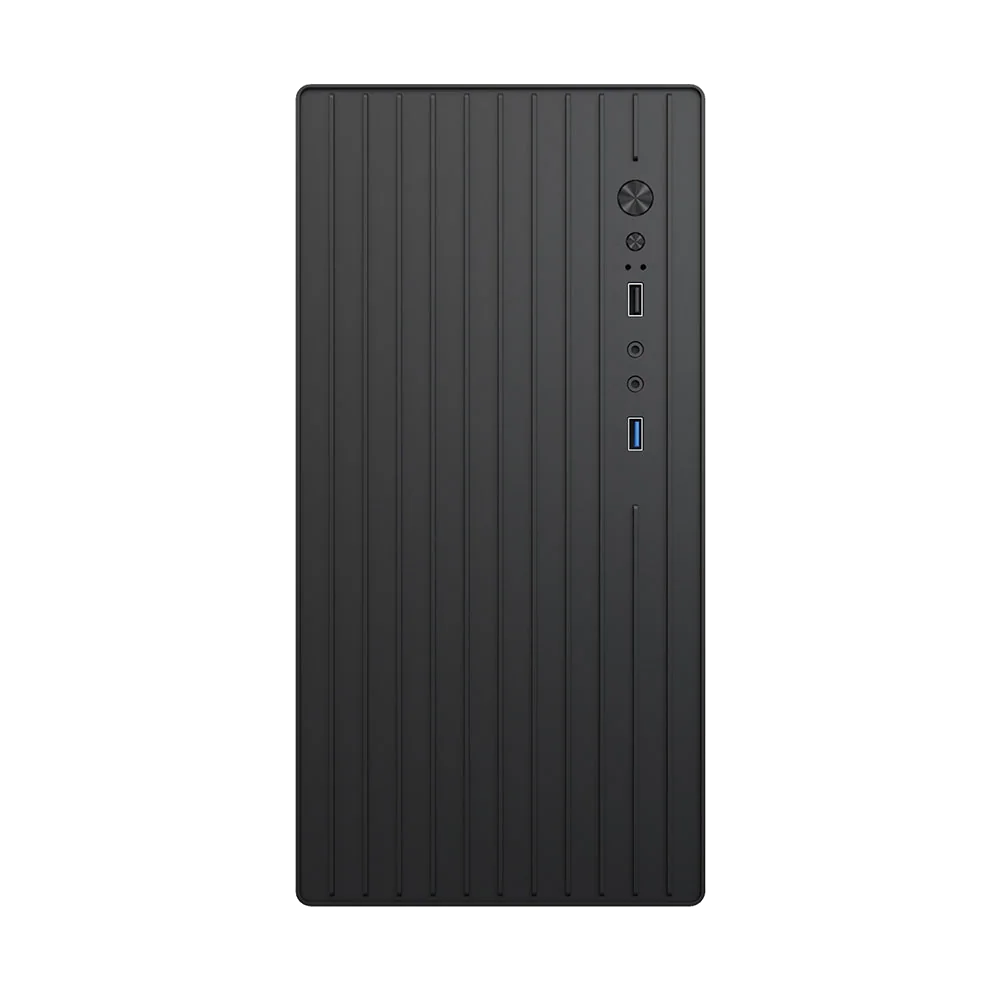

Office-friendly. A plain black mini tower with a compact footprint; front I/O keeps USB 3.0, USB 2.0 and HD audio within reach.

1 × USB 3.0
1 × USB 2.0
HD audio
Black finish

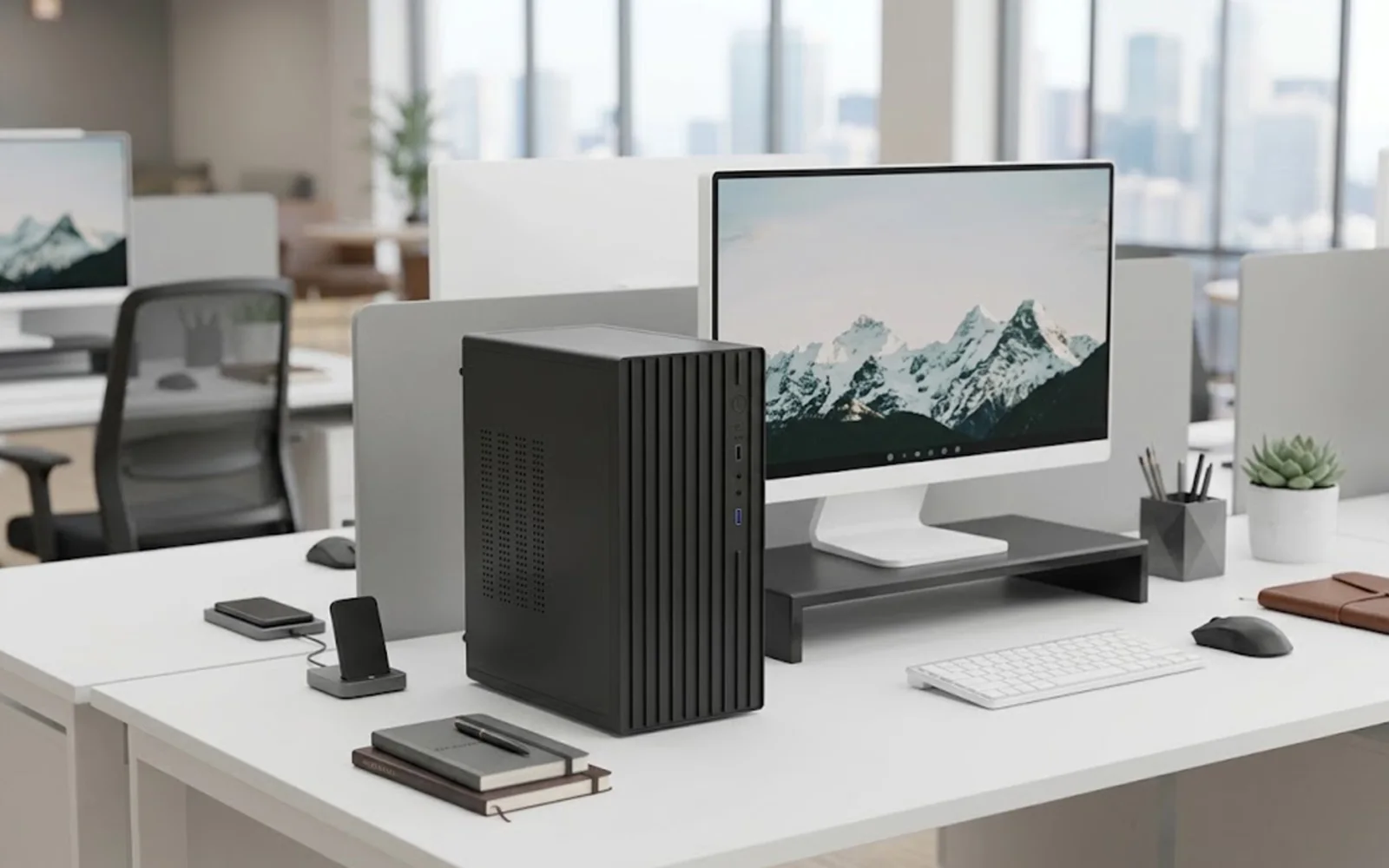

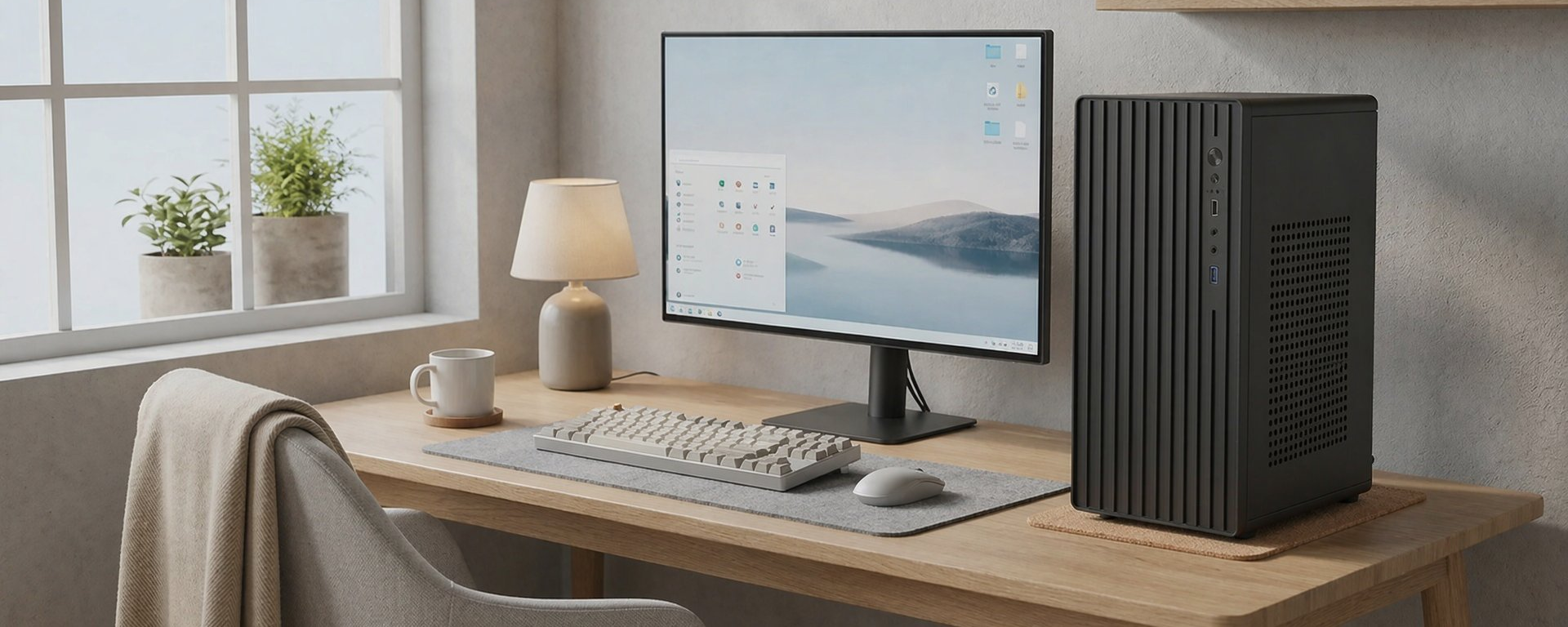

Entic E1 plain black mini tower on an office desk

Specifications

Basic Information

Product Name Entic E1

Product Type Mini Tower Case

Product Dimensions 168(W) × 258(D) × 340(H) mm

Product Weight 1.35 kg

Specifications & Expandability

Motherboard Support Micro-ATX (Minimum) / Mini-ITX ※ Micro-ATX up to 9.2 × 8.0 in (234 × 203 mm)

CPU Cooler Support Up to 145 mm in height

I/O Ports USB3.0 × 1 / USB2.0 × 1 / Power Button / RESET Button / HD Audio | MIC

VGA Support Up to 230 mm in length

PCI Slots 3

Power Supply Support Standard ATX, up to 160 mm

HDD Bays 8.9cm(3.5") HDD × 2 MAX

SSD Bays 6.4cm(2.5") SSD × 2 MAX

Cooling System

Pre-Installed Cooling System

Rear80 mm non-RGB 3-pin fan × 1 (included)

Optional Cooling System (Fan)

Rear90 mm fan × 1 (supported)

※ 90 mm fan must be purchased separately.

Entic E1 for OEM, ODM and distribution

The Entic E1 is a compact Micro-ATX / Mini-ITX mini tower that measures 168 × 258 × 340 mm and is supplied without a power supply, so you can match the PSU to the build. It takes a standard ATX power supply up to 160 mm in a top mount, graphics cards up to 230 mm and CPU coolers up to 145 mm, and ships with a single pre-installed 80 mm low-noise rear fan behind a ventilated side panel.

Available as an OEM/ODM program: your own brand, packaging and fan/colour configuration, and the certification and labelling your market requires — including EAC marking for the Eurasian Economic Union and CE for the European Union. Tell us your market and volumes and we will confirm current certificates and lead times.

FAQ

Which motherboards does the Entic E1 fit?

The Entic E1 is a Micro-ATX mini tower and supports Micro-ATX and Mini-ITX motherboards. Full dimensions and clearances are listed in the specification table above.

Does the Entic E1 come with a power supply?

No. The chassis is supplied without a power supply. It accepts a standard ATX power supply up to 160 mm long, mounted at the top of the case.

What graphics card and CPU cooler will fit?

Graphics cards up to 230 mm and CPU coolers up to 145 mm in height fit inside the Entic E1, with clearance checked against the top-mounted power supply.

How much cooling does the case include?

One 80 mm low-noise fan is pre-installed at the rear for exhaust. The same rear position also accepts an optional 90 mm fan (sold separately), supported by a perforated ventilated side panel for passive airflow.

What are the Entic E1 dimensions?

The Entic E1 measures 168 × 258 × 340 mm (W × D × H) and takes Micro-ATX / Mini-ITX boards, a standard ATX PSU up to 160 mm in a top mount, GPUs up to 230 mm and CPU coolers up to 145 mm.

Can the Entic E1 be produced under our own brand?
