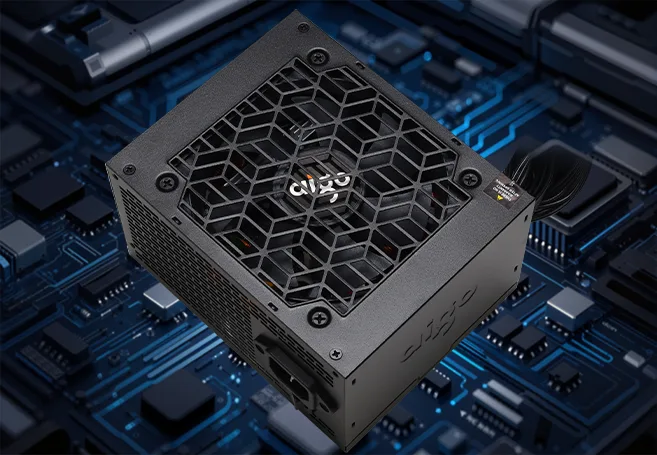

A 750 W ATX12V V2.53 power supply with a single +12 V rail delivering 62 A (744 W), 80 PLUS efficiency and a 120 × 150 × 86 mm form factor for high-end graphics cards.
01 — Footprint
Compact body, full output. The TY750 delivers 750 W from a 120 × 150 × 86 mm body, so it drops into compact ATX builds and short-depth chassis without giving up headroom for a mid-range graphics card.
02 — +12 V rail

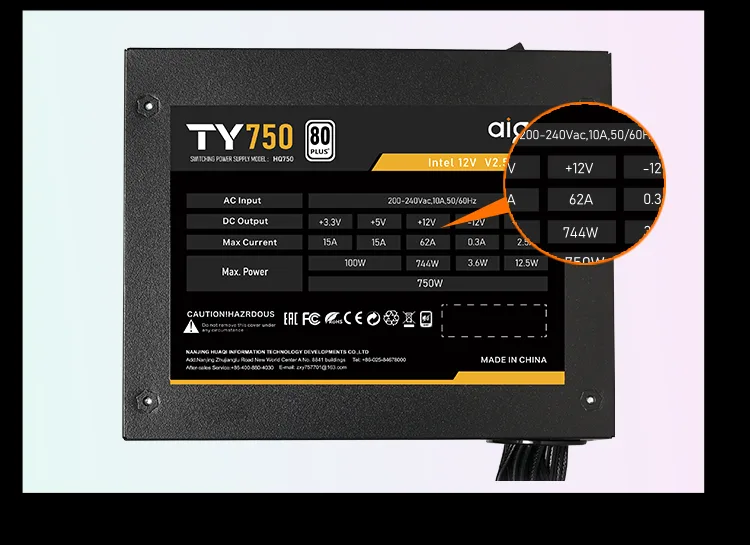

Headroom where it is drawn. A single +12 V rail carries 62 A / 744 W, which is what a modern board and a current graphics card actually draw, on the ATX12V V2.53 platform rather than an older topology.
03 — Build

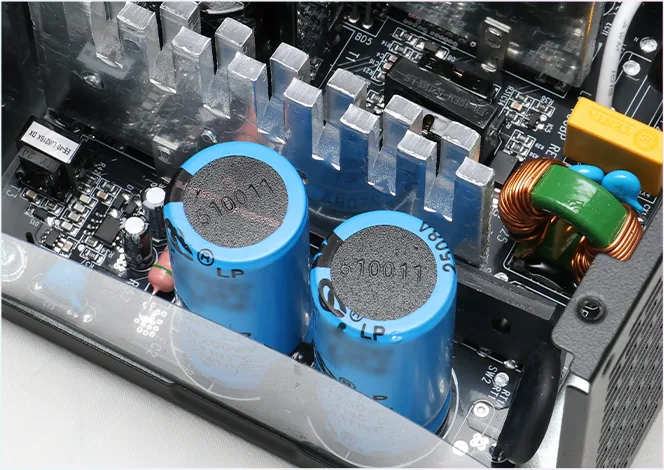

Cooler running, longer life. Taiwanese capacitors and a pure aluminium heat sink hold the unit stable at load, while the 11 cm fan moves air across the whole PCB instead of one hot spot.
04 — Harness
Everything a build needs. The fixed harness carries one 20+4 pin, 2 × CPU 4+4, 2 × PCIe 6+2, 5 × SATA and 3 × IDE 4-pin, plus the mains lead — enough for a multi-drive build without a modular premium.
The TY750 gives 750 W from a unit that is only 120 × 150 × 86 mm, which is what makes it practical for mainstream and performance desktop builds. The 62 A single +12 V rail supplies up to 744 W, and the platform is built around ATX12V V2.53 rather than an older topology.

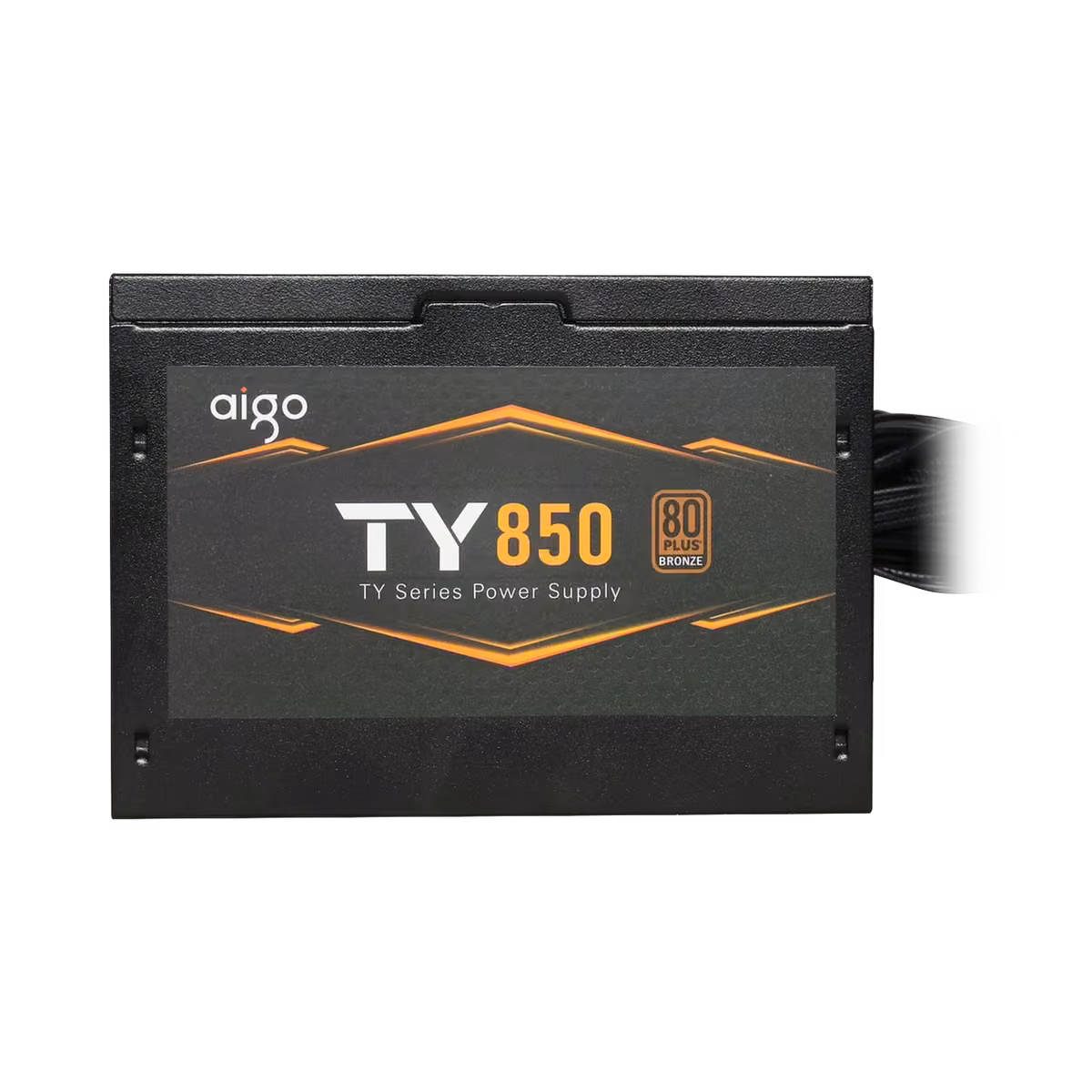

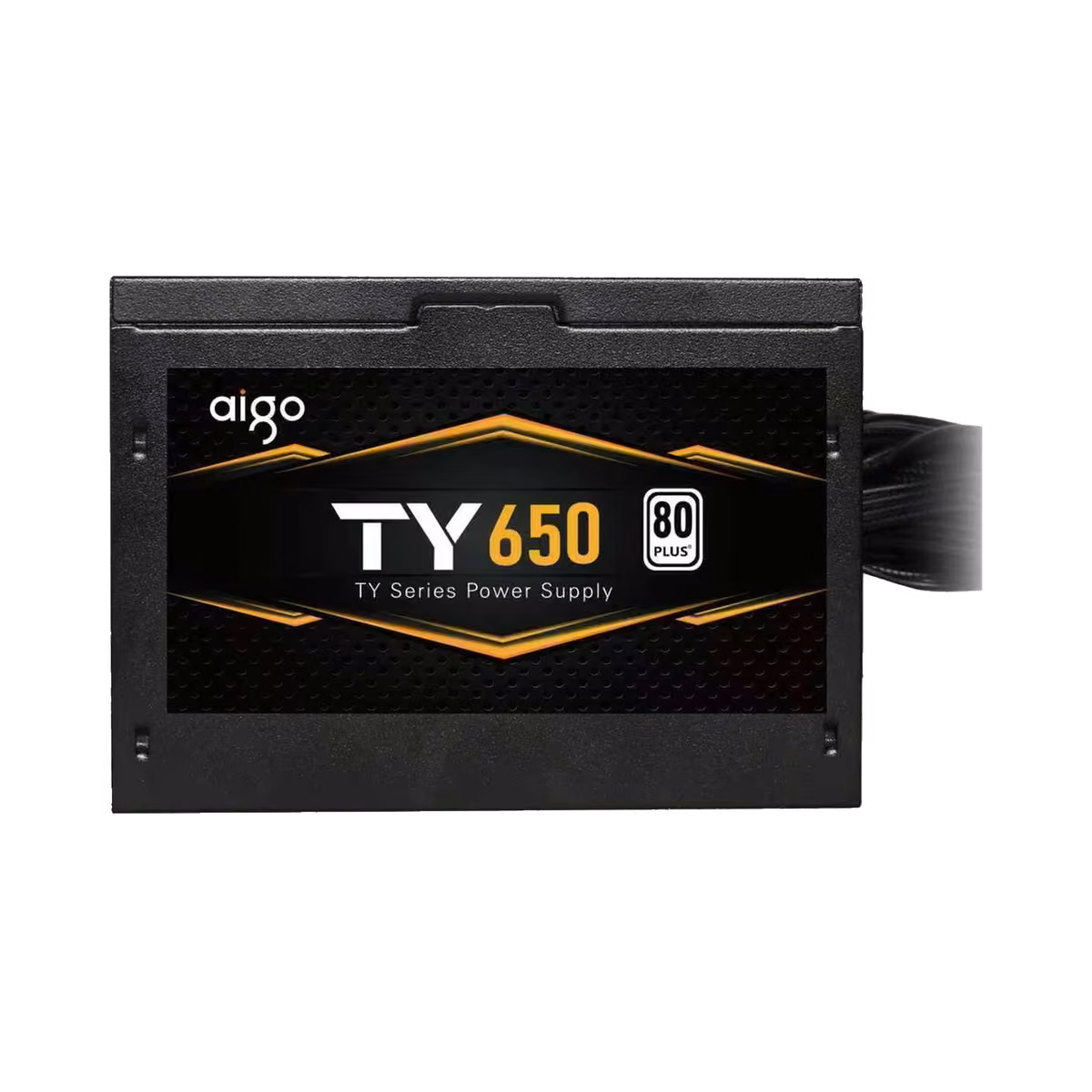

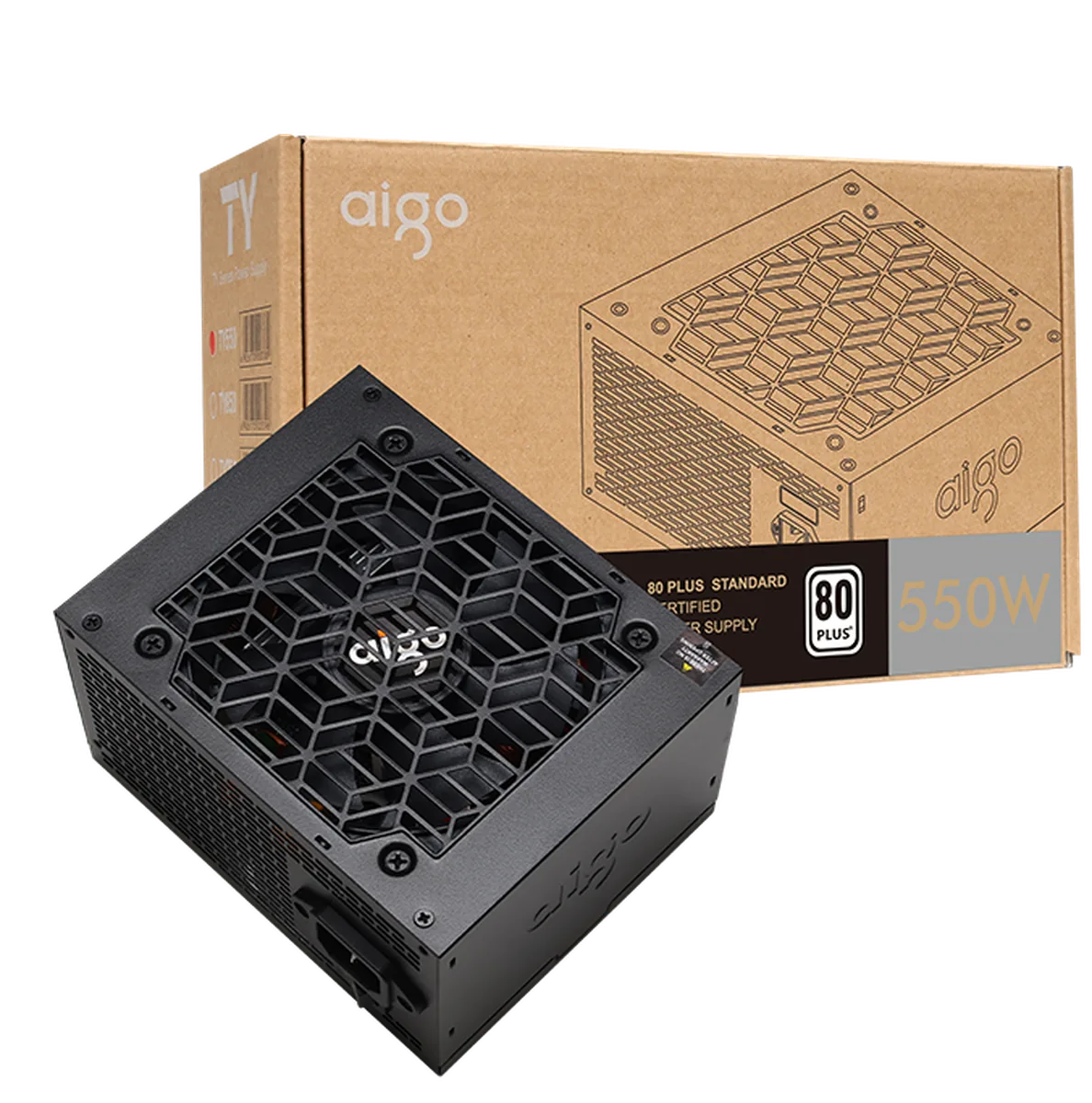

Every model in the TY series shares the same 120 × 150 × 86 mm zinc-coated steel body, the same 11 cm cooling fan and the same ATX12V V2.53 platform, so a distributor or integrator can stock one chassis family and cover 550 W to 850 W.
Available as an OEM/ODM program: your own brand, packaging, cable configuration and label artwork, plus the certification and labelling your market requires — including EAC marking for the Eurasian Economic Union and CE for the European Union.

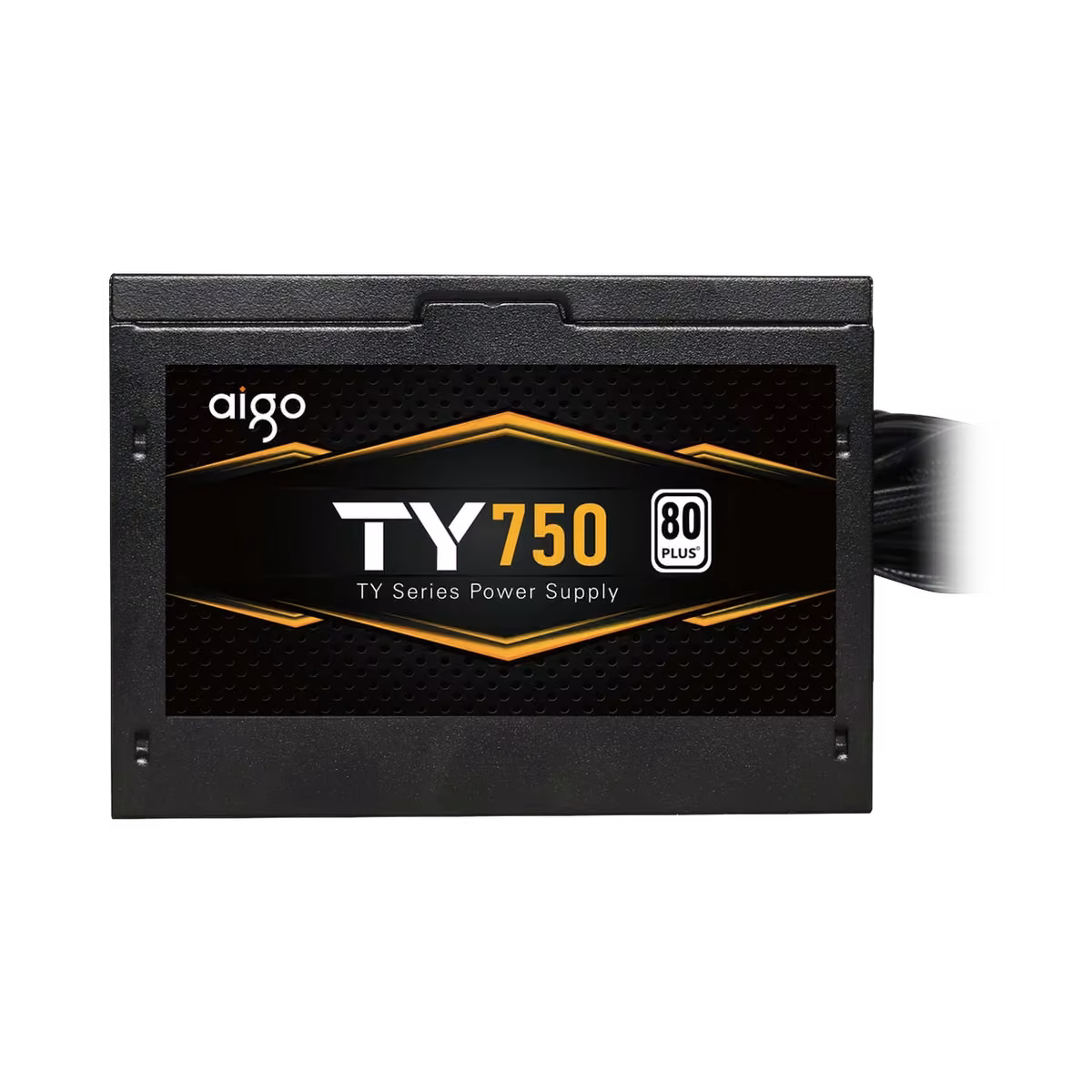

The TY750 (factory model HQ750) delivers 750 W continuous output with a 62 A single rail on +12 V, in the same 120 × 150 × 86 mm body as the rest of the TY series.
Yes. It provides the standard ATX 24-pin, EPS CPU 4+4, PCIe 6+2 and SATA connectors used by current ATX boards and add-in cards. Exact connector counts are listed in the specification table above.
The input range is 200–240 V AC, 10 A, 50/60 Hz. This unit is intended for 220–240 V mains markets; it is not a 110 V input design, so a step-down transformer is required for a 120 V supply.

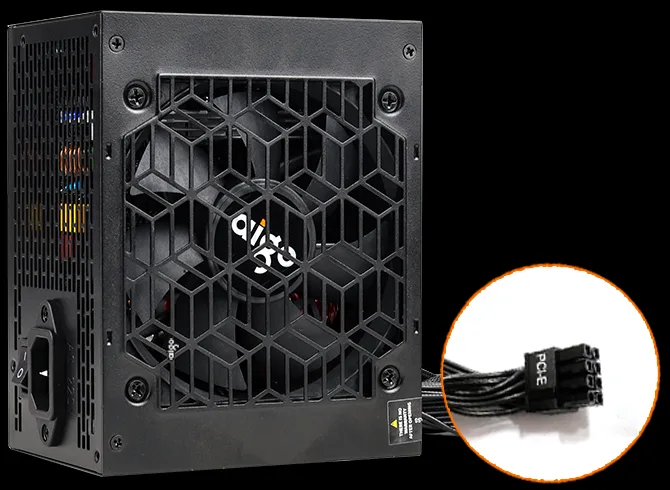

No. The TY series uses a fixed cable harness, which keeps the cost down and removes the contact resistance of modular connectors. The 6+2 pin PCIe leads daisy-chain, so a multi-card build still routes cleanly behind the tray.
Yes. Branding, packaging, cable configuration and label artwork can all be adapted, together with the certification and labelling your market requires — including EAC for the Eurasian Economic Union and CE for the European Union. Contact info@sny-inc.com with your volumes and markets.
