Type
A dual tempered-glass ATX chassis with a curved front panel, Back-to-Future (BTF) motherboard support, vertical graphics-card mounting and four pre-installed Fan Infinity ARGB fans.
01 — Glass

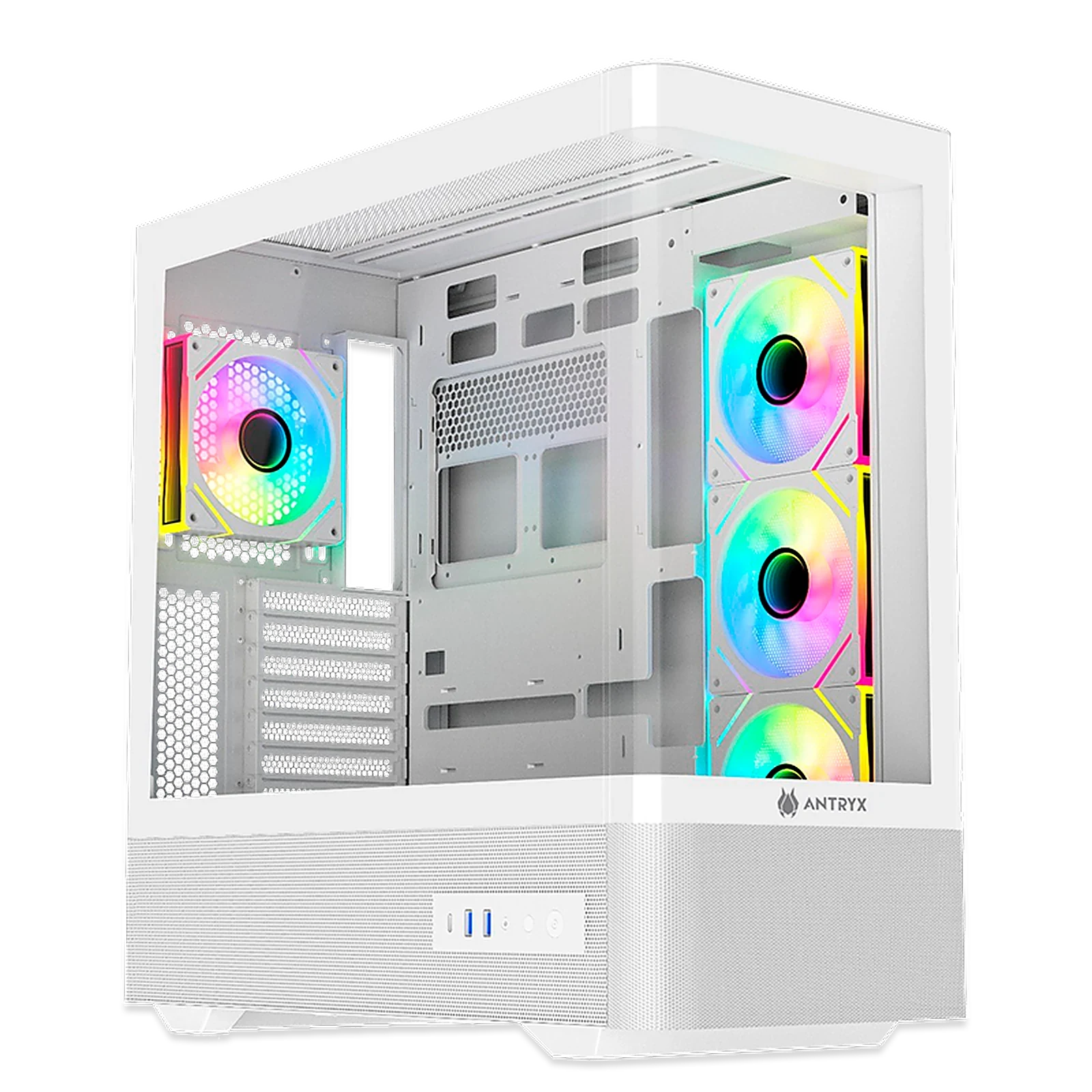

The glass does the styling. The front panel is tempered glass and curved rather than flat, so it wraps into the side of the case. The frame stays square — glass carries the styling, 0.7 mm SPCC steel carries the structure.
02 — BTF

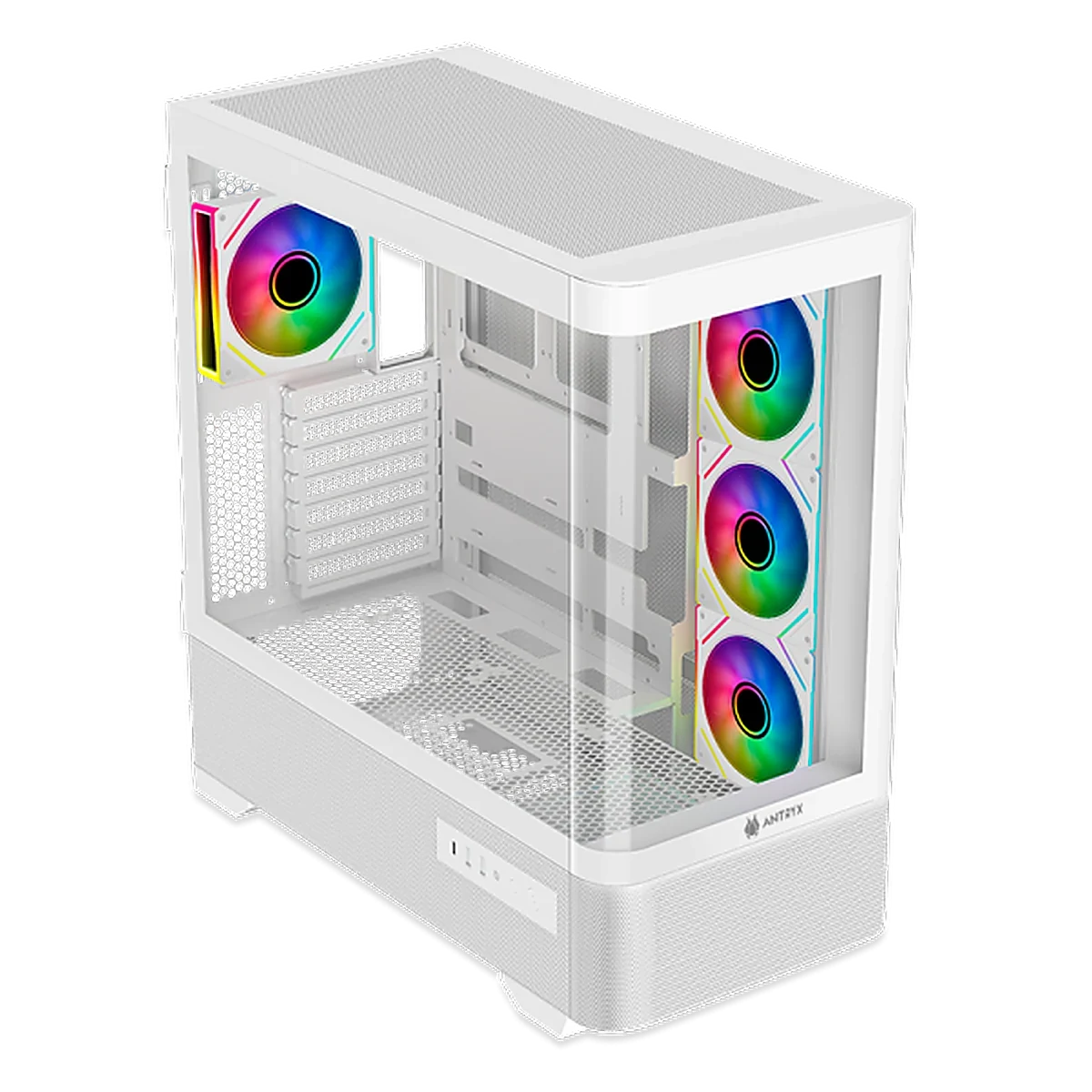

No cables in the chamber. The tray is drilled for Back-to-Future boards, which move power, fan and front-panel connectors to the back of the PCB. With a BTF board the main chamber shows almost no cabling at all.
03 — Cooling
Lit out of the box. Three 120 mm fans on the side and one at the rear ship installed, all Fan Infinity ARGB. Ten fan positions and three radiator mounts leave room to go further.
04 — Layout

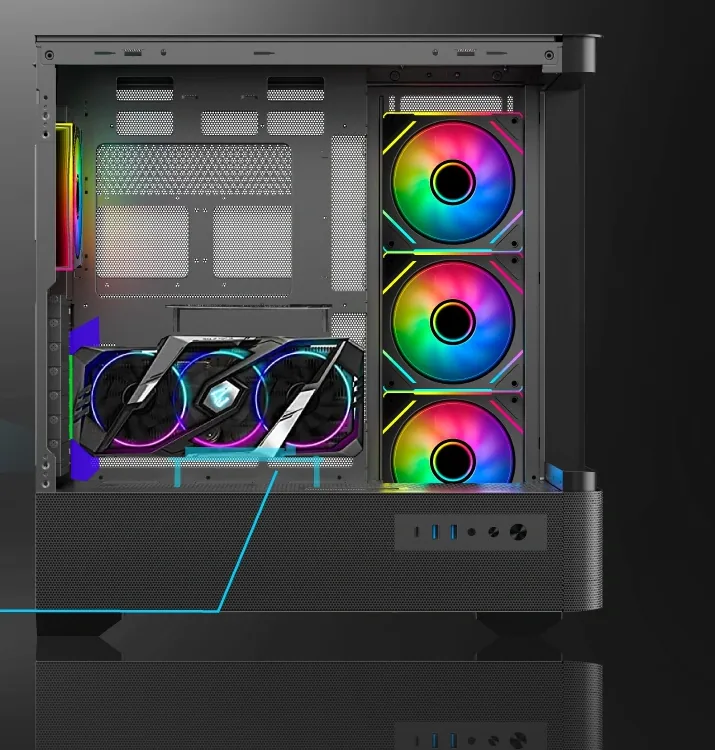

Upright or horizontal. A vertical video rack is included, so a graphics card can stand upright — only the riser cable is optional. Card clearance runs to 410 mm and CPU coolers to 180 mm.

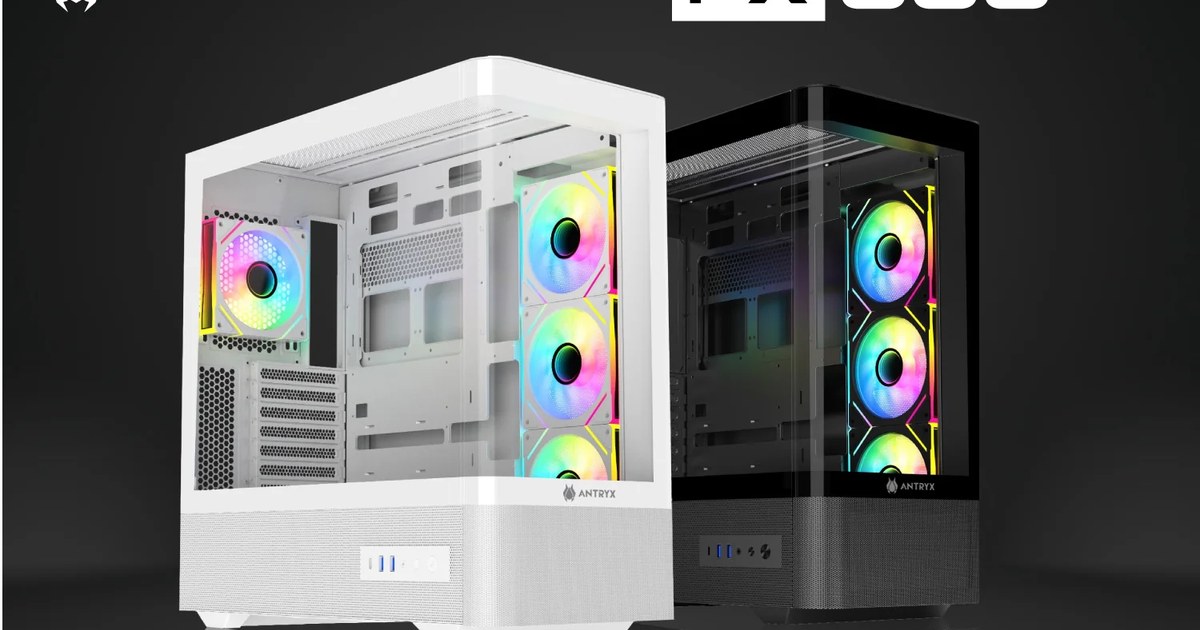

The FX 830 is an ATX chassis built around dual tempered glass — a curved front panel that wraps into the side, and a full-height glass side panel. The tray is drilled for Back-to-Future (BTF) motherboards, a vertical video rack is included for upright graphics-card mounting, and four Fan Infinity ARGB fans ship pre-installed. It takes graphics cards up to 410 mm and CPU coolers up to 180 mm.
Available as an OEM/ODM program: your own brand, packaging and cable/fan configuration, and the certification and labelling your market requires — including EAC marking for the Eurasian Economic Union and CE for the European Union. Tell us your market and volumes and we will confirm current certificates and lead times.
The FX 830 supports Mini-ITX, Micro-ATX, ATX and E-ATX motherboards. It is also drilled for Back-to-Future (BTF) boards that route connectors behind the PCB.

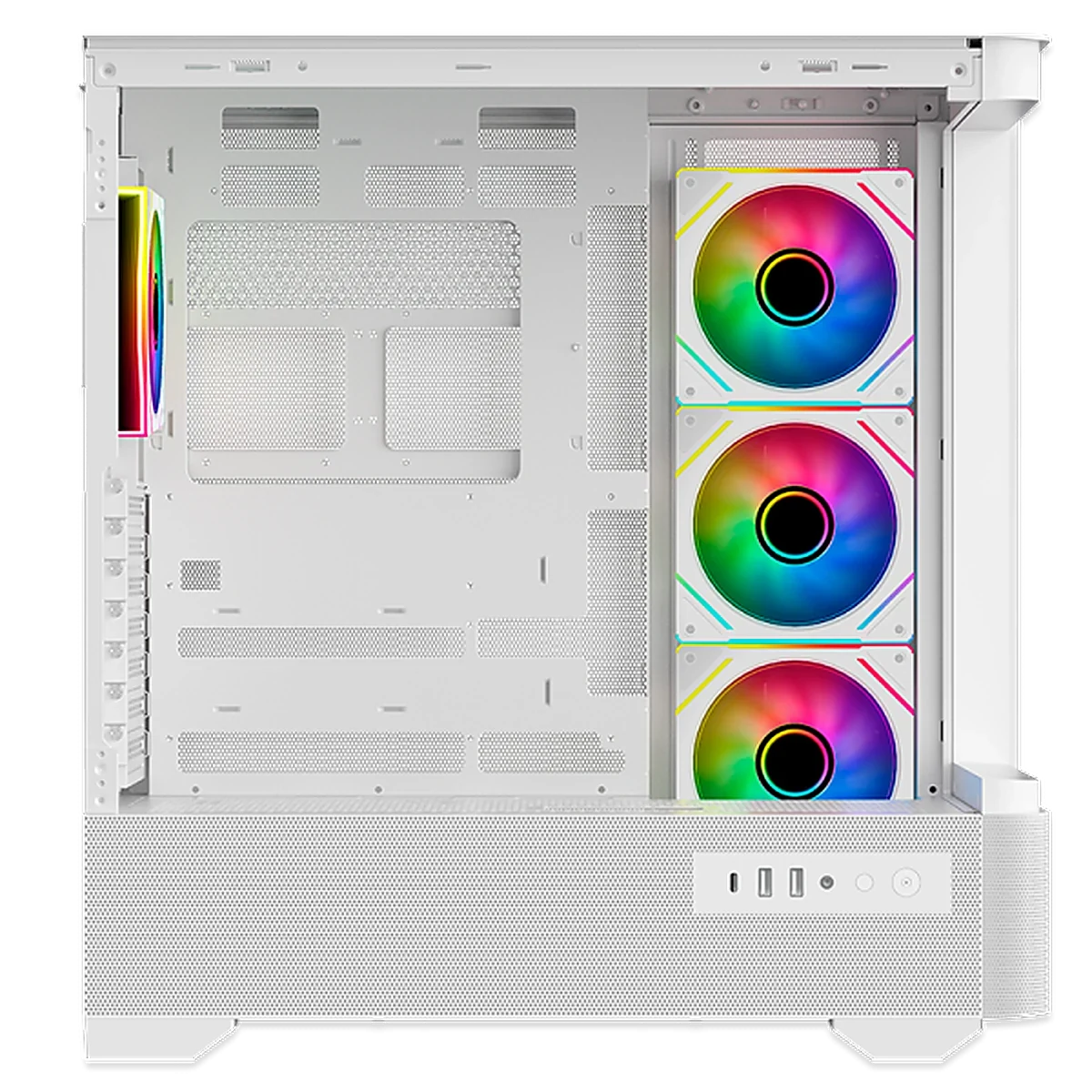

Four Fan Infinity ARGB 120 mm fans ship pre-installed — three on the side and one at the rear. There are up to ten fan positions in total, with radiator support up to 360 mm at both the top and the side, and 120 mm at the rear.
Yes. A vertical video rack is included, so a graphics card can be mounted upright — an optional riser cable is required for the connection.
Yes. GPU clearance is up to 410 mm and CPU cooler clearance up to 180 mm, which accommodates current flagship hardware.

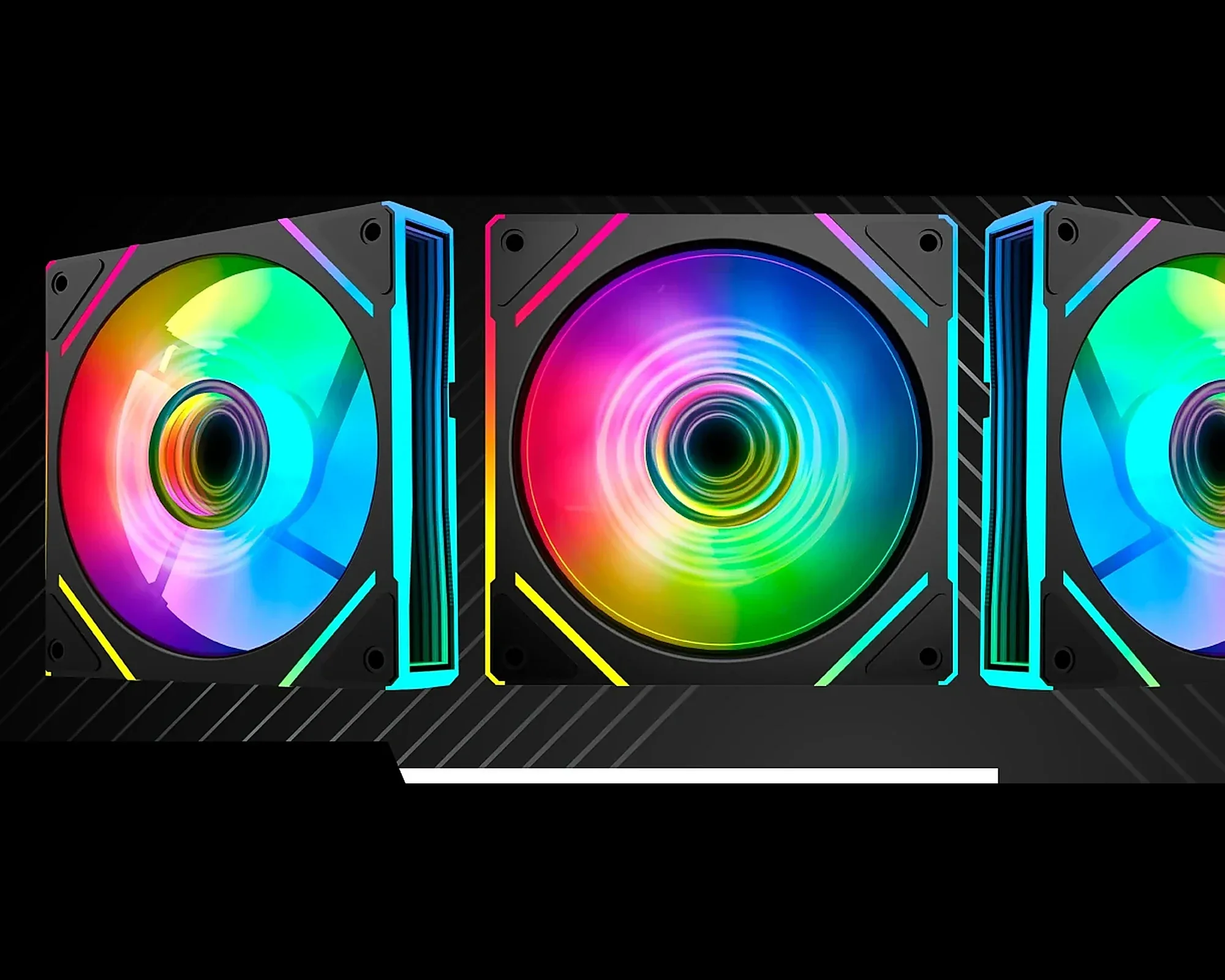

The included fans are Fan Infinity ARGB with reverse-blade illumination, driven by a bundled ARGB controller. It is compatible with ASUS Aura, MSI RGB, ASRock ARGB and Gigabyte Fusion 2.0, and can drive up to four ARGB devices.
Yes — OEM/ODM covers your own brand, packaging and cable/fan configuration, plus EAC marking for the Eurasian Economic Union and CE for the European Union. Tell us your market and volumes and we will confirm current certificates and lead times.
Part of the SNY factory line, built under the same OEM/ODM programme.
